Description

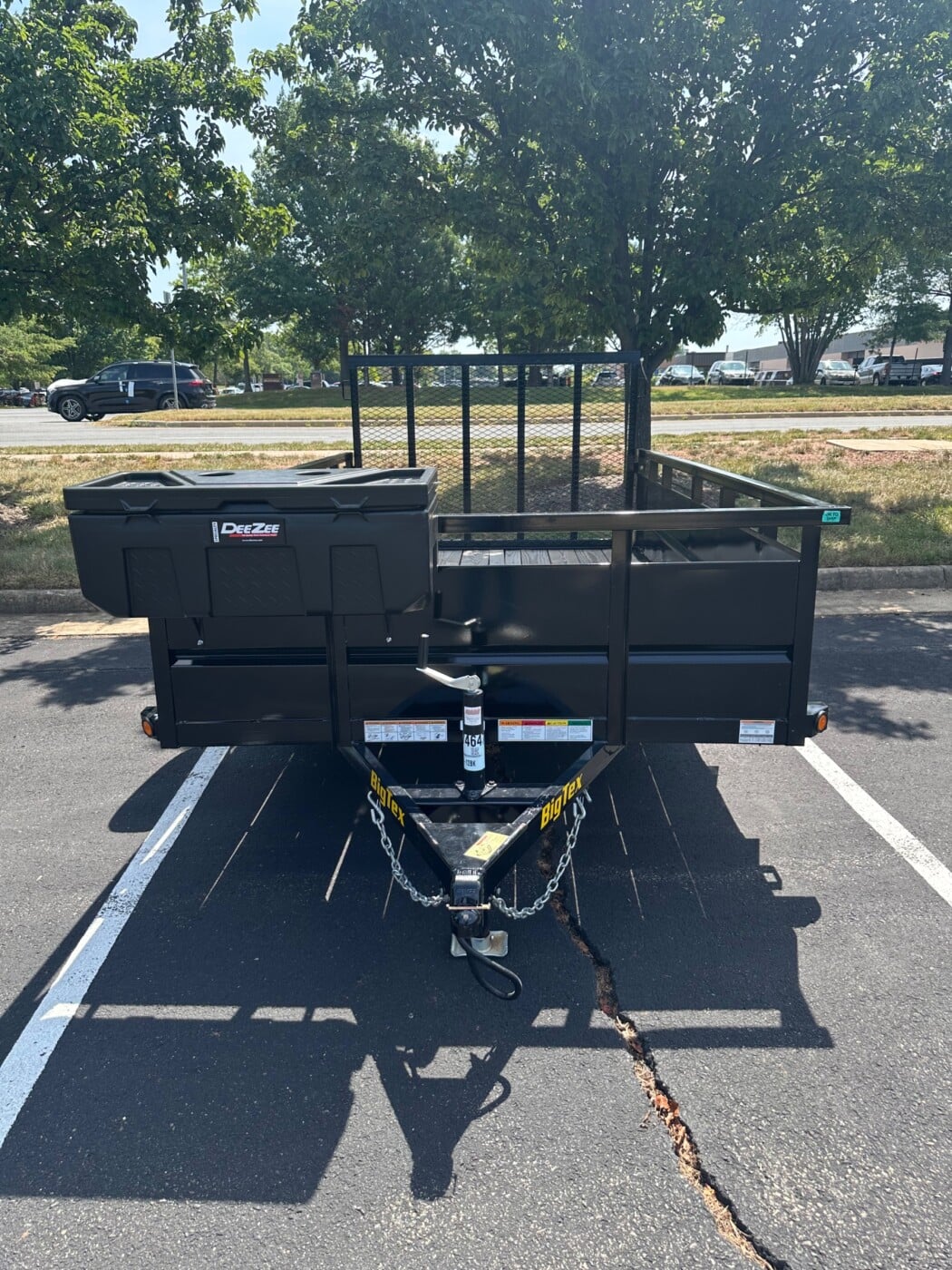

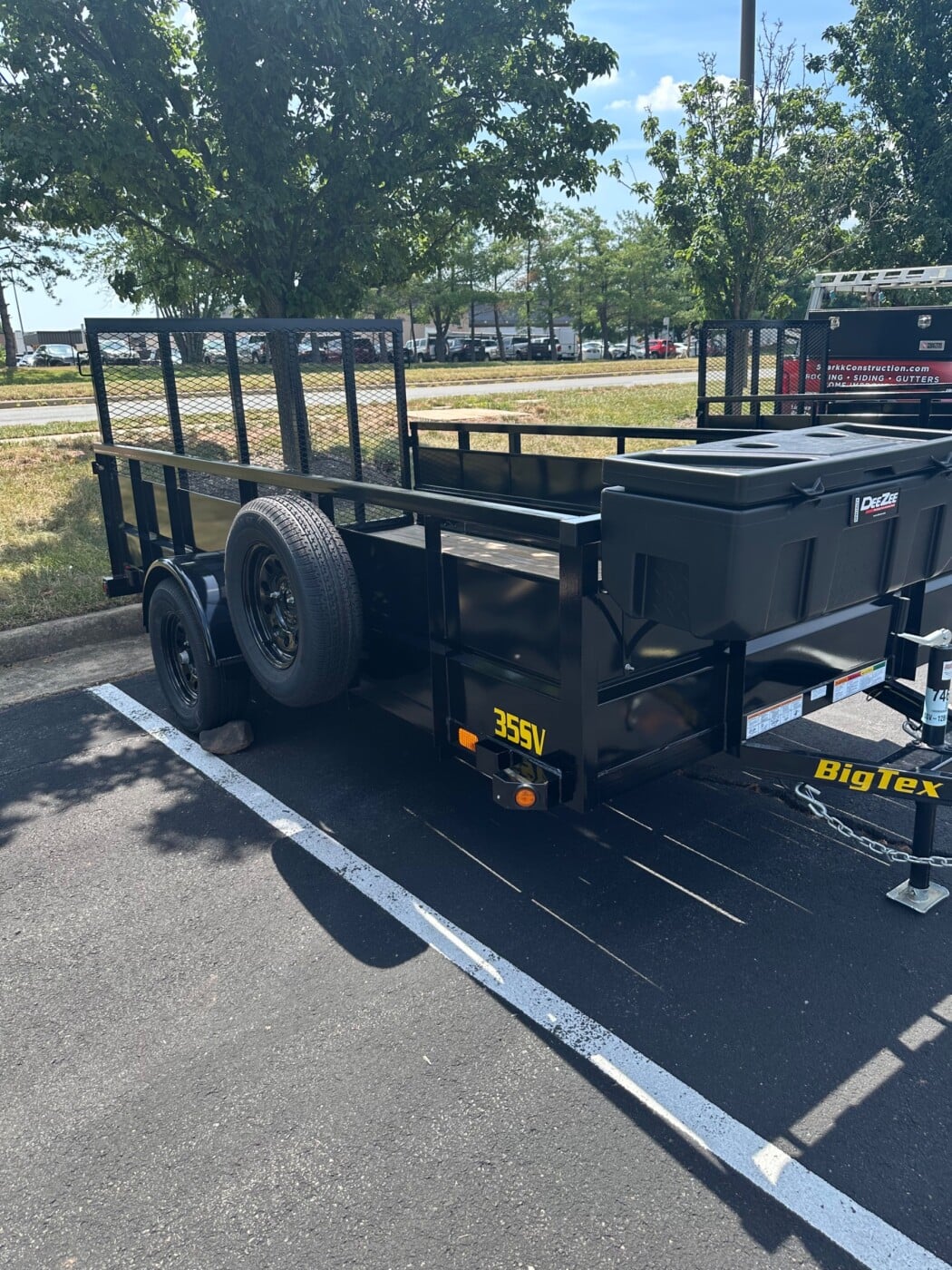

Big Tex 35SV-12 Single Axle Utility Trailer – Specifications
Deck Dimensions: 5′ wide × 12′ long
GVWR (Gross Vehicle Weight Rating): 3,500 lb
Empty Weight: Approximately 900–1,000 lb (varies slightly by model year)
Payload Capacity: Approximately 2,500–2,600 lb
Axle: Single 3,500 lb axle with cambered EZ-Lube hubs
Brakes: Typically not equipped with brakes (brakes may be optional depending on model/version)
Coupler: Adjustable 2" ball coupler
Jack: 2,000 lb top-wind jack (usually included)

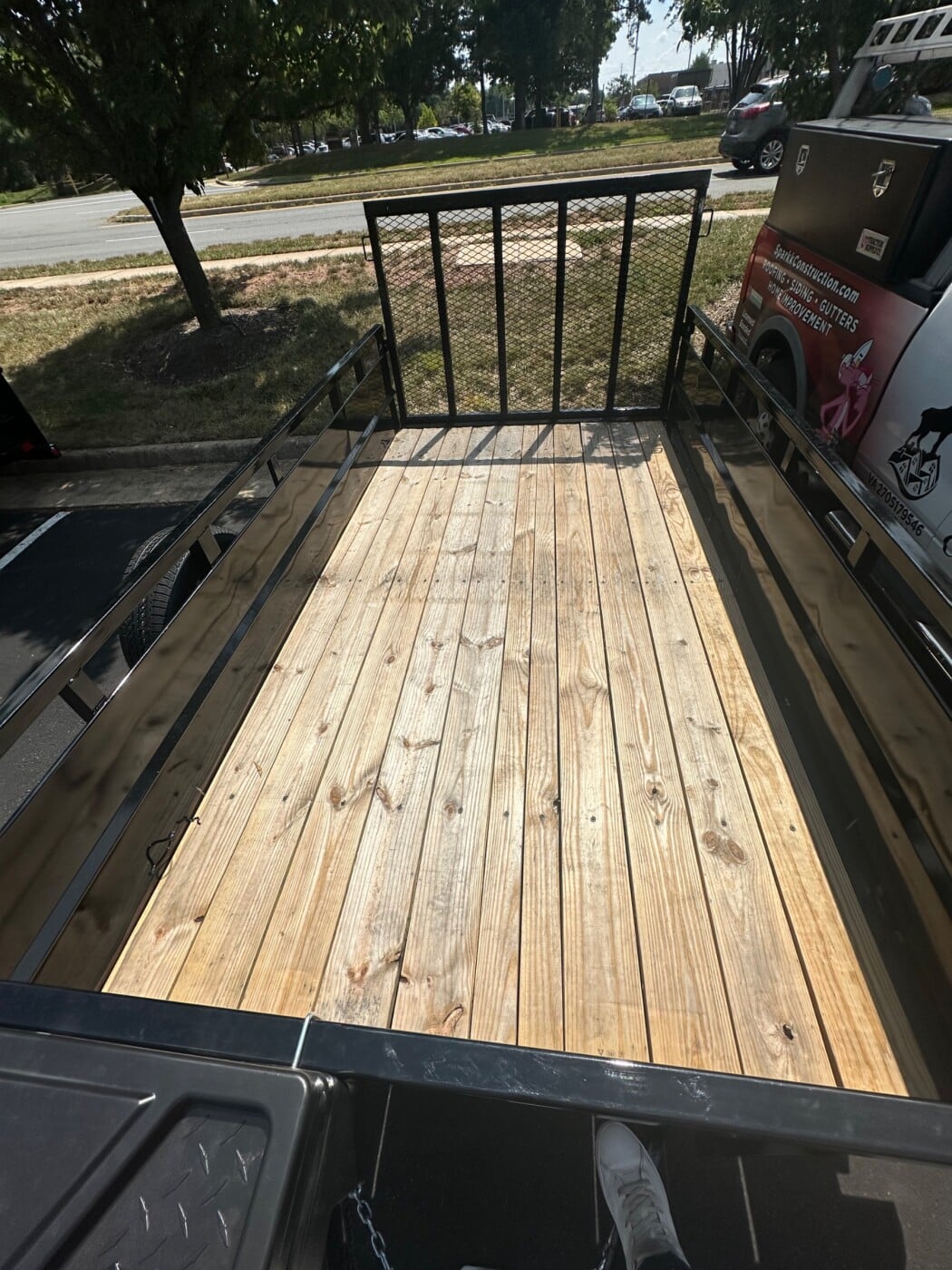

Flooring: Pressure-treated pine wood deck
Tires: ST205/75 R-15 Load Range C radial tires
Wheels: 15″ wheels with 5-on-5 bolt pattern
Fenders: 9″ × 72″ tear-drop style, removable
Lighting: LED DOT-approved stop, tail, and turn lights
Wiring: Sealed wiring harness with 4-pin or 7-way plug depending on model
Tie-Downs: Multiple stake pockets and tie-down points along the sides
Frame: 5″ × 3″ × 3/16″ angle iron frame
Crossmembers: 3″ × 2″ × 3/16″ angle iron crossmembers

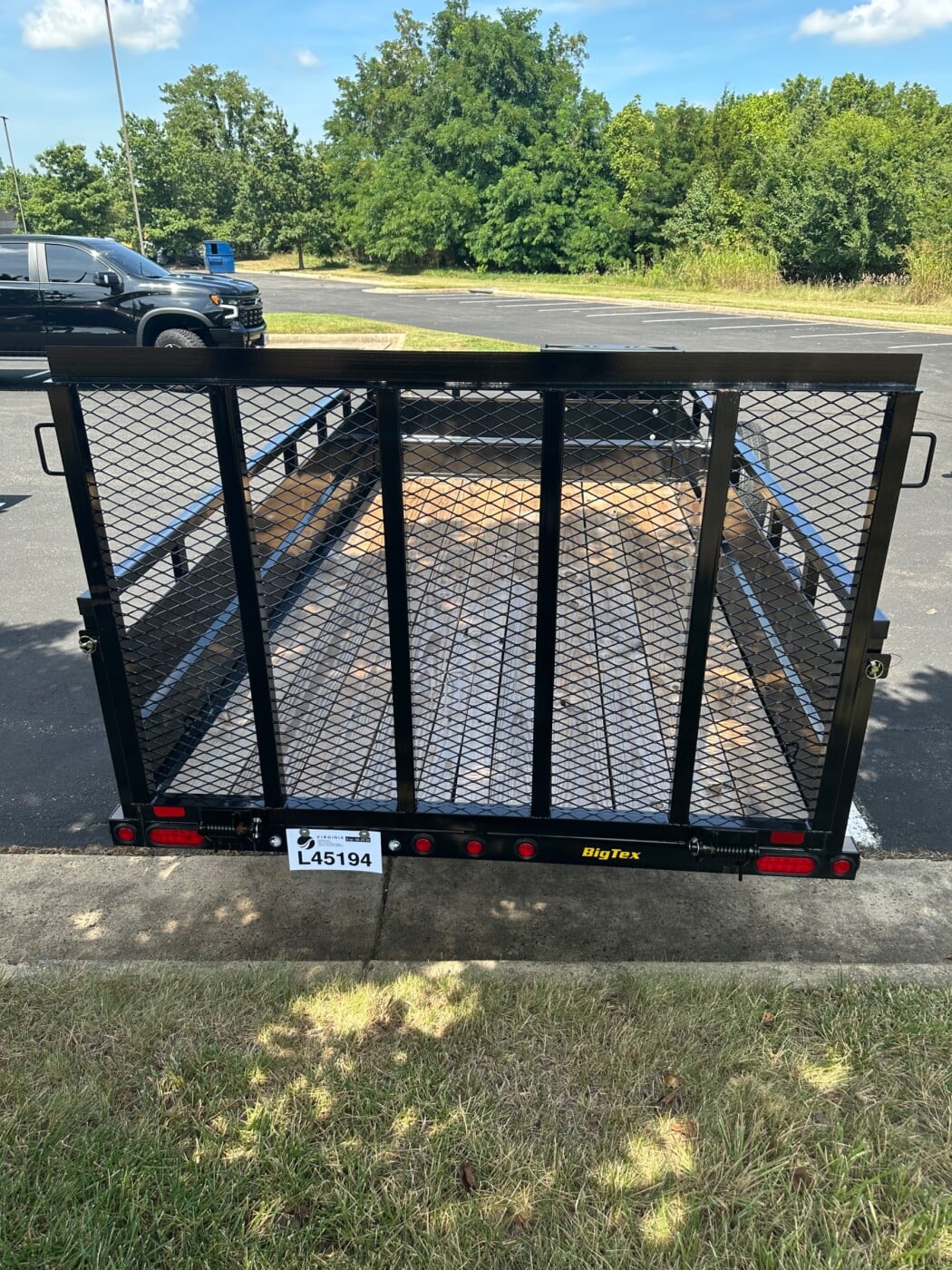

Ramp: Usually includes removable rear ramp for easy loading

Key Features
Durable powder-coated finish for corrosion resistance
Removable fenders for easy loading and maintenance
Lightweight design with strong steel frame
Multiple stake pockets and tie-down points for flexible cargo securing
Suitable for hauling lawn equipment, ATVs, furniture, and general cargo
Easy hookup with adjustable coupler and standard jack
