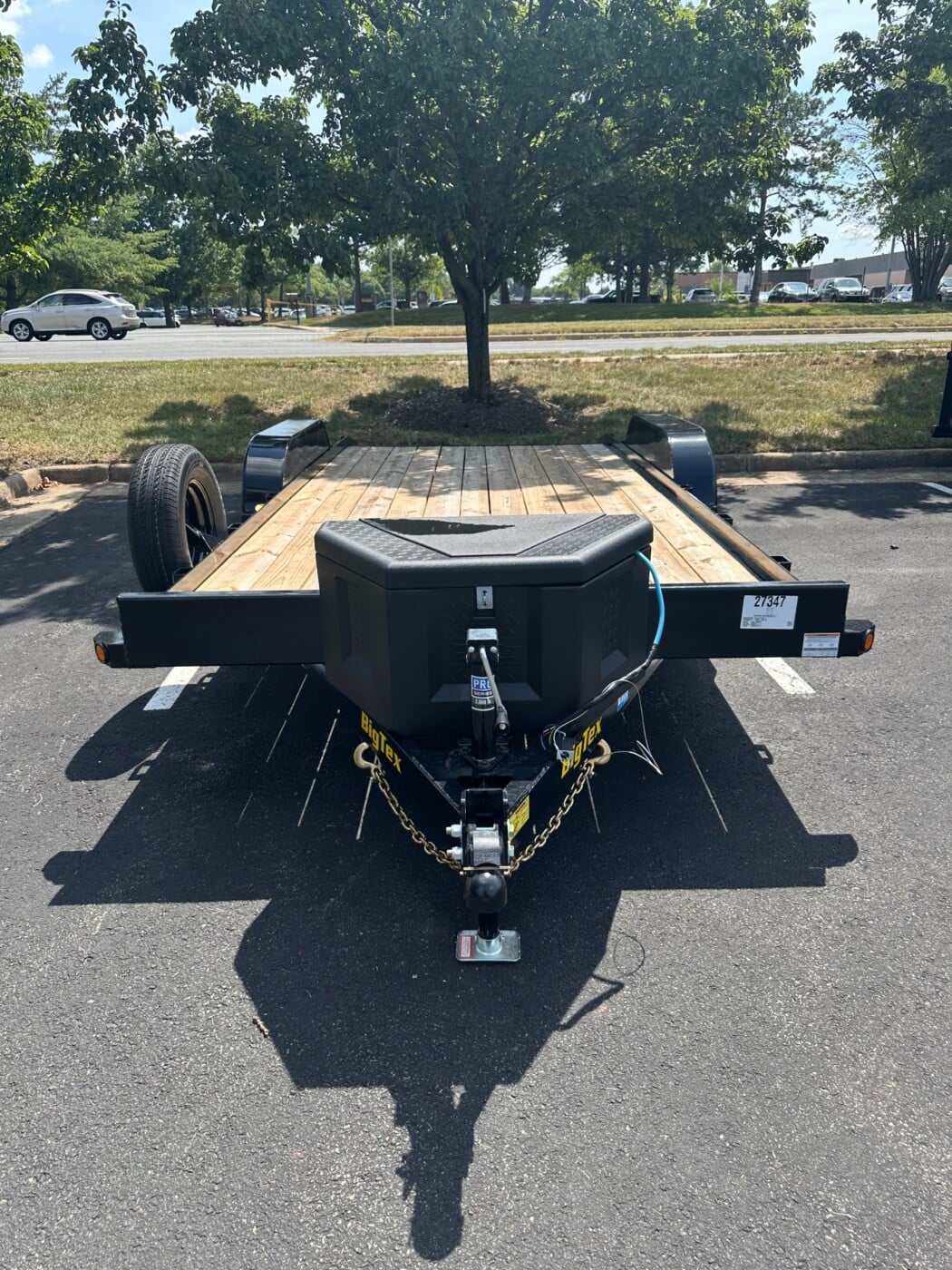

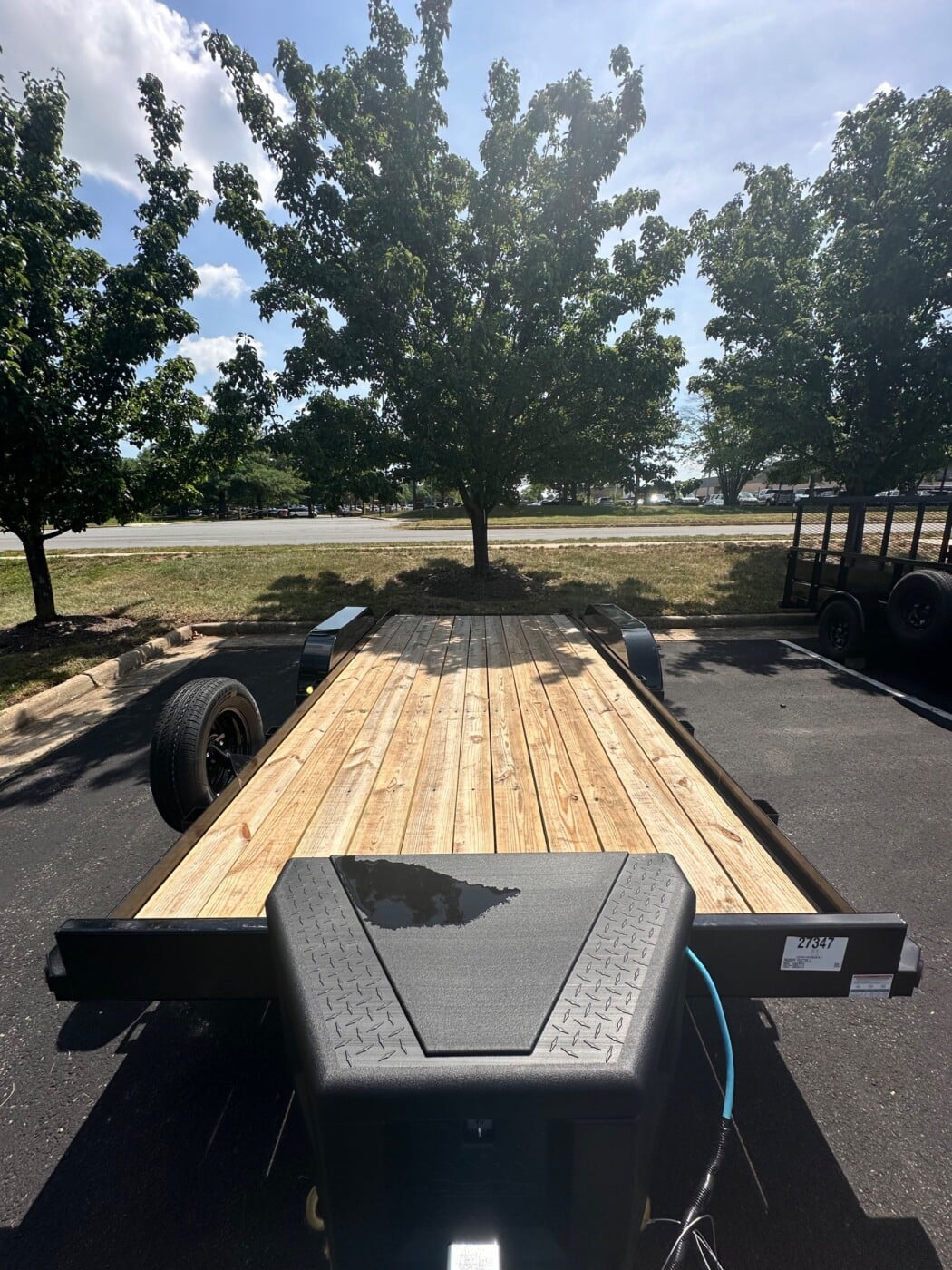

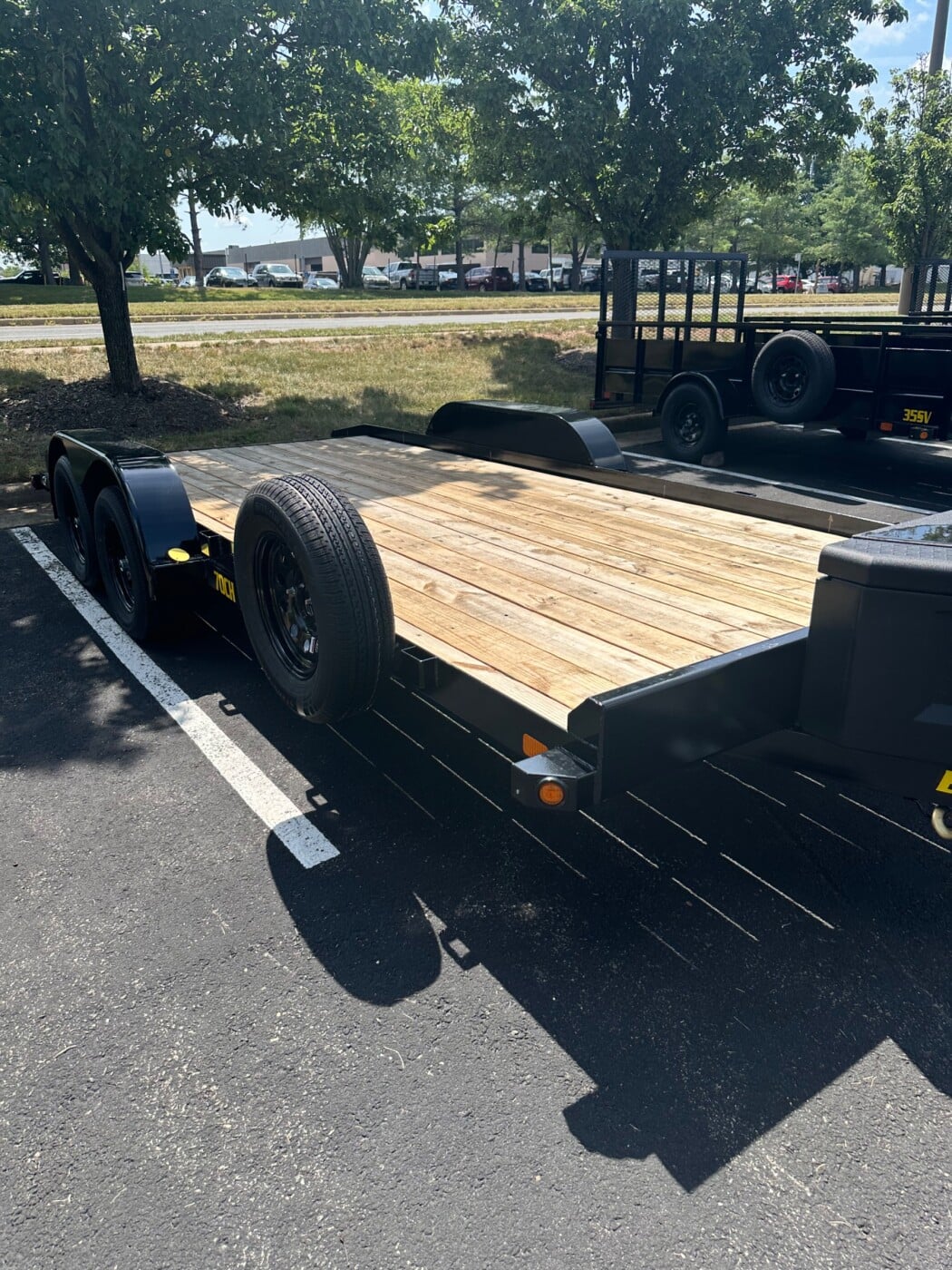

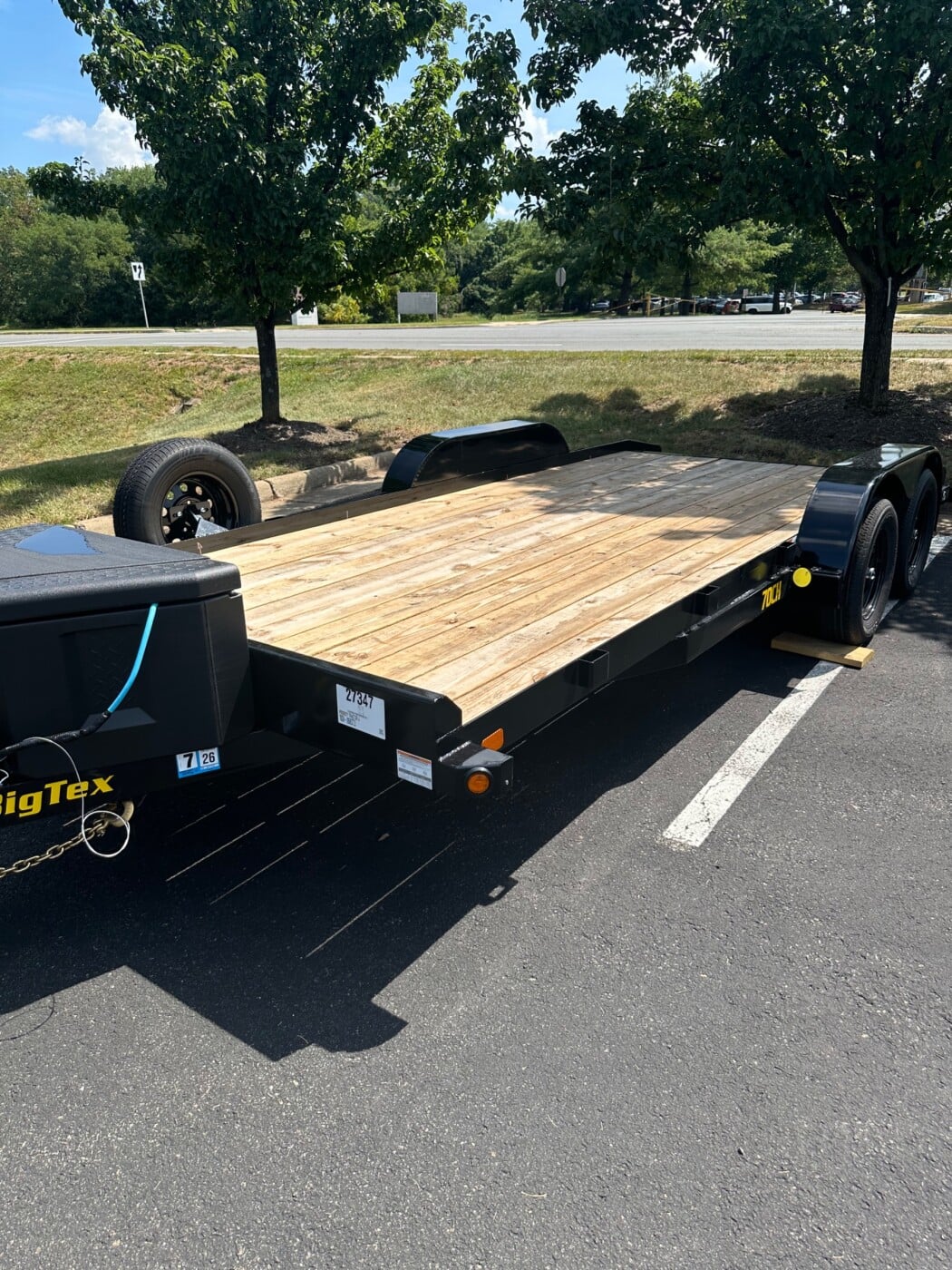

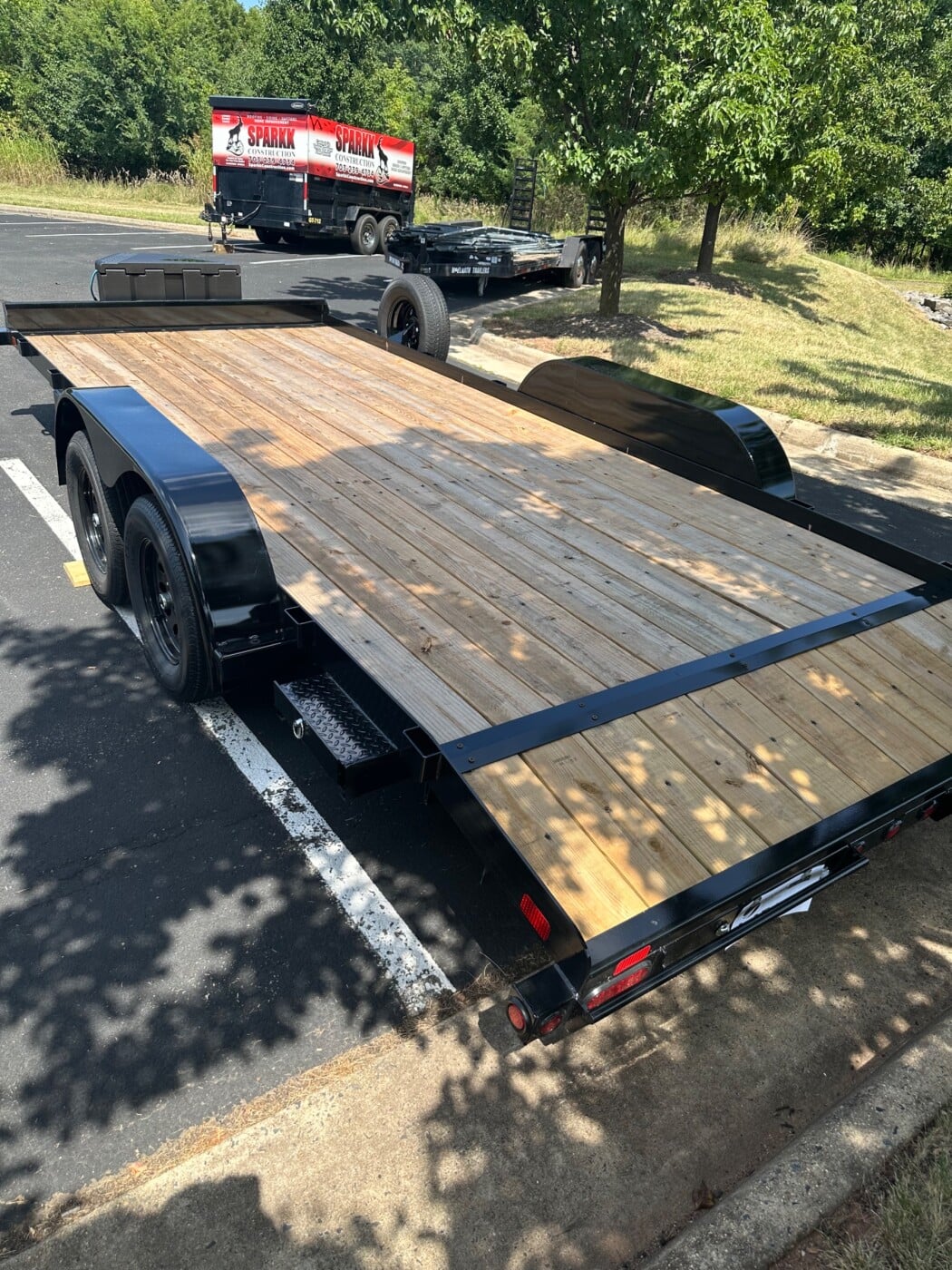

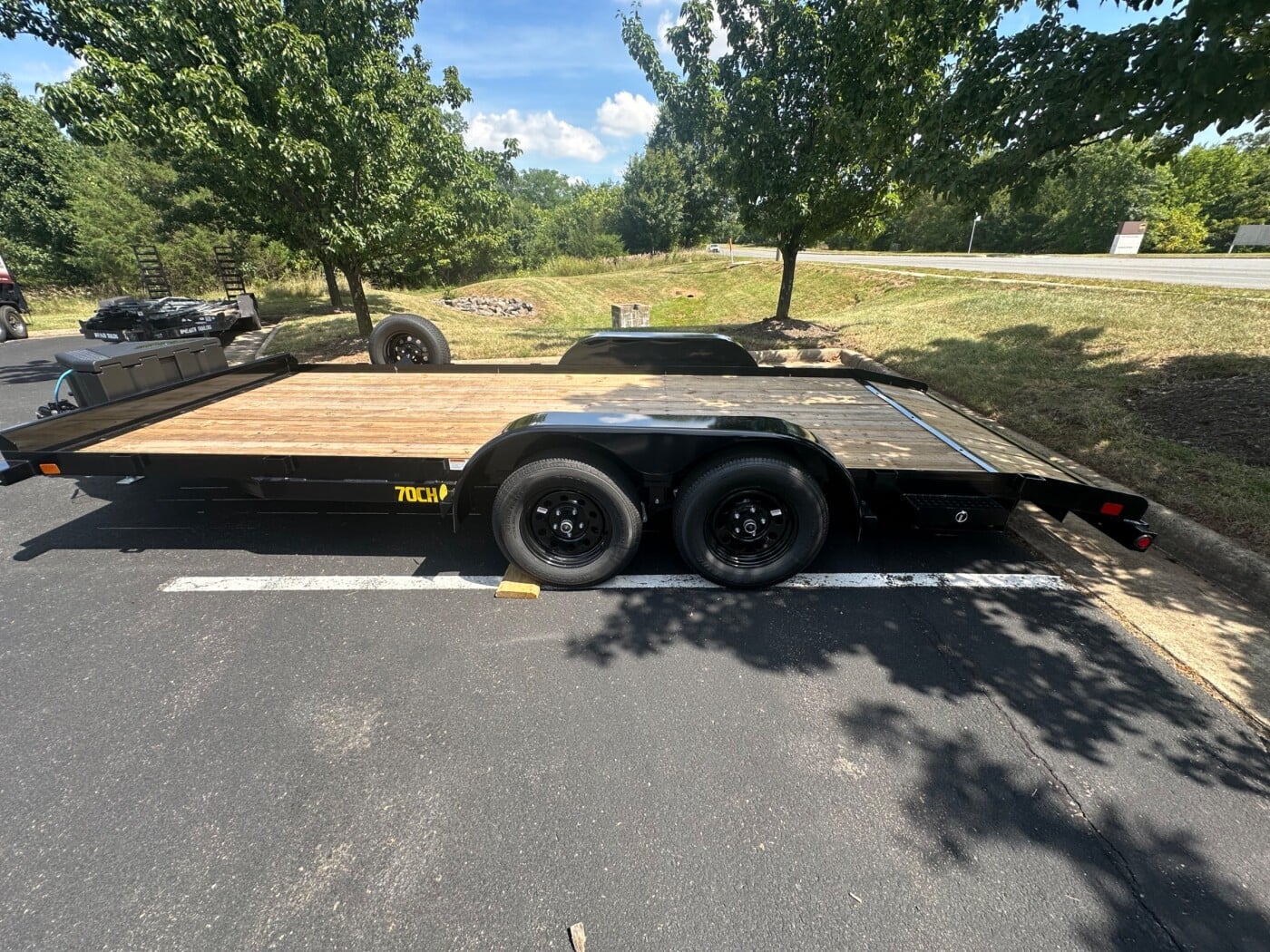

Big Tex 70CH-18 Tandem Axle Car Hauler – Specifications
Deck Dimensions: 83″ wide × 18′ long
GVWR (Gross Vehicle Weight Rating): 7,000 lb
Empty Weight: Approximately 1,910 lb
Payload Capacity: Approximately 5,090 lb
Axles: Two 3,500 lb cambered EZ-Lube axles
Brakes: Electric brakes on front axle (brakes on second axle optional)
Coupler: Adjustable 2″ forged coupler
Tongue: 4″ channel fold-back tongue
Jack: 2,000 lb top-wind set-back jack
Flooring: Treated pine wood deck (upgradable)
Tires: ST205/75 R-15 Load Range C radial tires
Wheels: 15″ wheels with 5-on-5 bolt pattern
Fenders: 9″ × 72″ tear-drop style, removable
Lighting: LED DOT-approved stop, tail, and turn lights
Wiring: Sealed wiring harness with 7-way RV-style plug
Tie-Downs: Multiple tie-down pockets along both sides
Stake Pockets: Optional
Ramps: 4′ slide-in angle iron ramps (dovetail optional)
Frame: 5″ × 3″ × 5/16″ angle frame
Crossmembers: 3″ × 2″ × 3/16″ angle iron
Key Features
Removable fenders for easy access/loading of low vehicles
Radial tires for improved ride quality and longevity
Set-back jack design to prevent interference with tailgates
Breakaway safety system with battery and switch
Durable powder-coat finish
Multi-location tie-down points for securing various loads
