Description

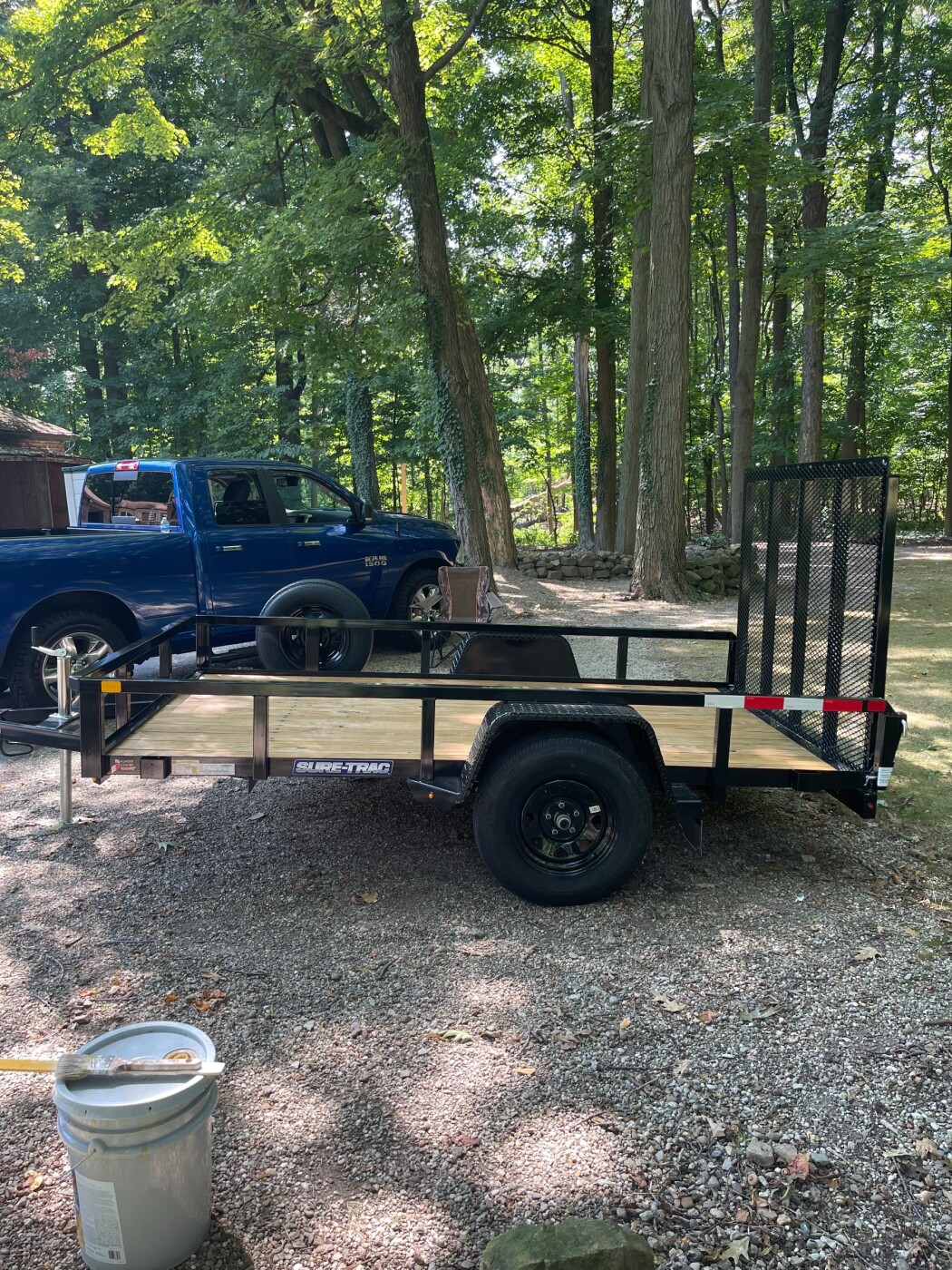

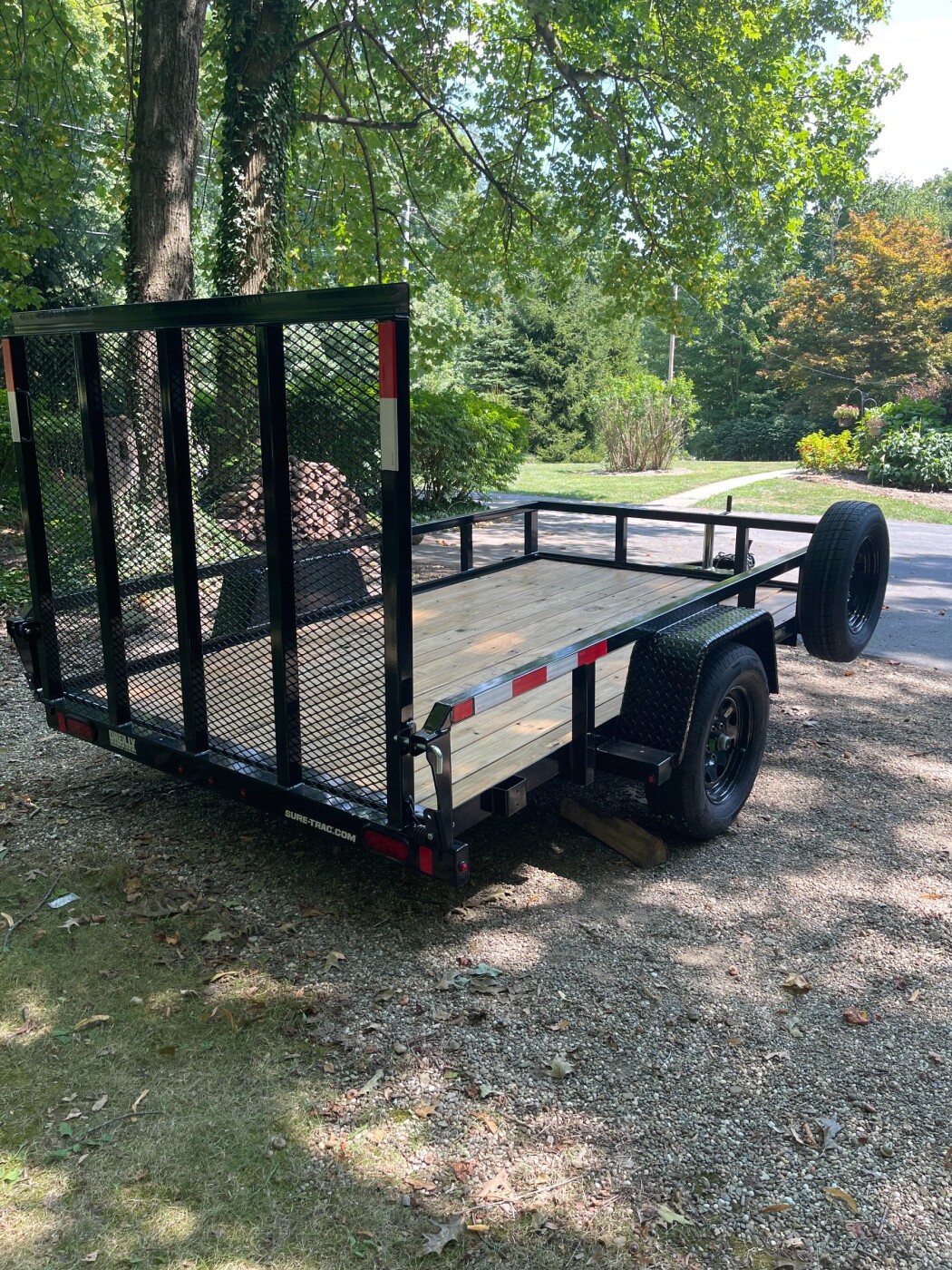

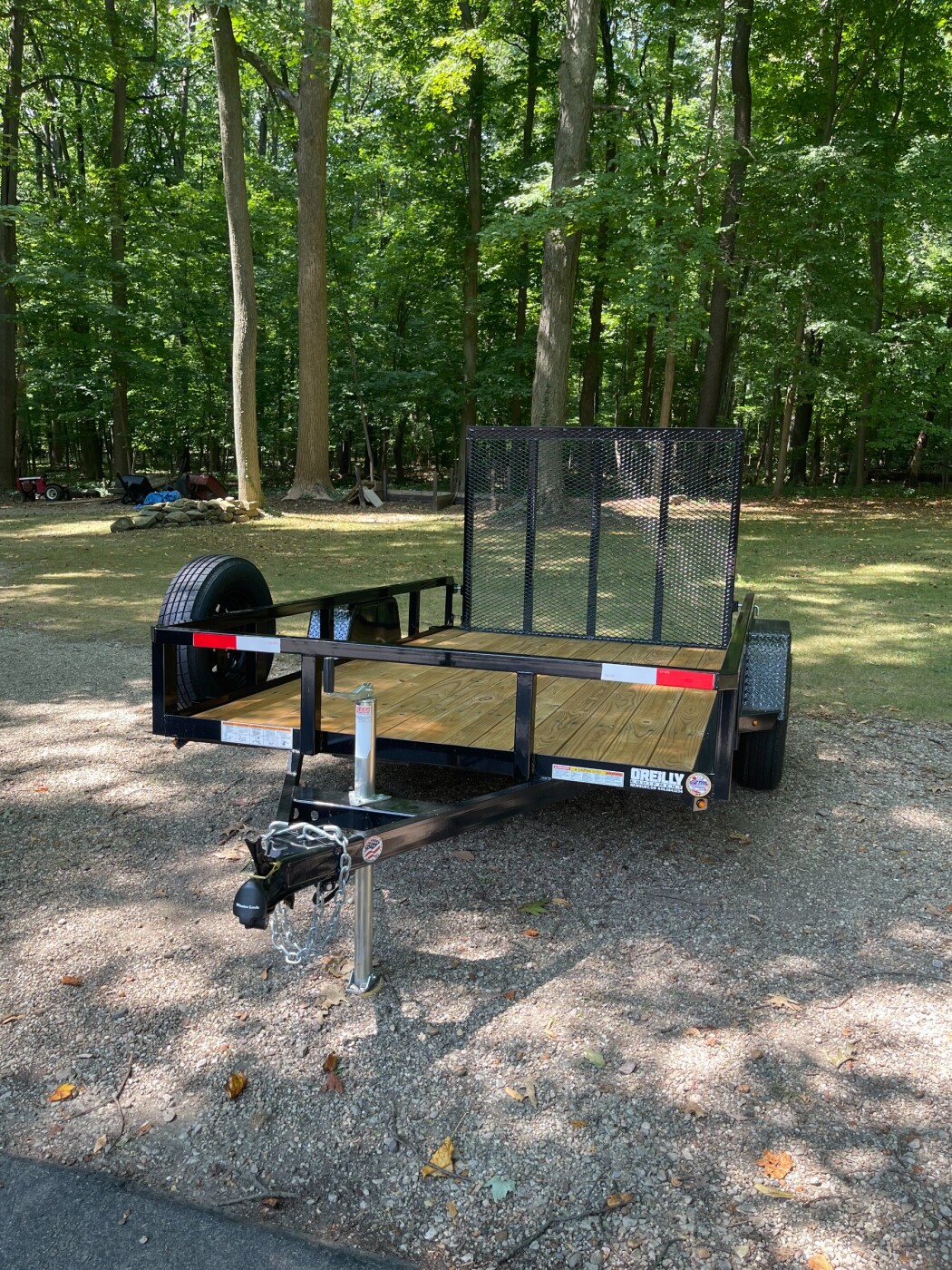

6x10 Single axle tube top utility trailer - bumper pull - black
GVWR - 2990lbs
Empty - 990lbs
Bumper pull
Ramp included
4 D-ring tie downs - 6000lbs capacity each

**Ratchet straps and tarp available upon request**

FRAME: 3" x 2" x 3/16" Angle

CROSS MEMBERS: 3" x 2" x 3/16" Angle (24" On Center)

TOP RAIL: 2" x 2" Square Tube

TONGUE: 3" Channel (A-Frame)

UPRIGHTS: 2" x 2" Square Tube

COUPLER: 2" A-Frame Ball Coupler

JACK: Setback 5k Top Wind, Zinc Plated

FENDERS: Tread Plate

AXLE: Easy Lube Hubs

SUSPENSION: Leaf Spring

TIRES: 205/75R15 LRC

WHEELS: 15", 5 On 4.5, Radial Tires

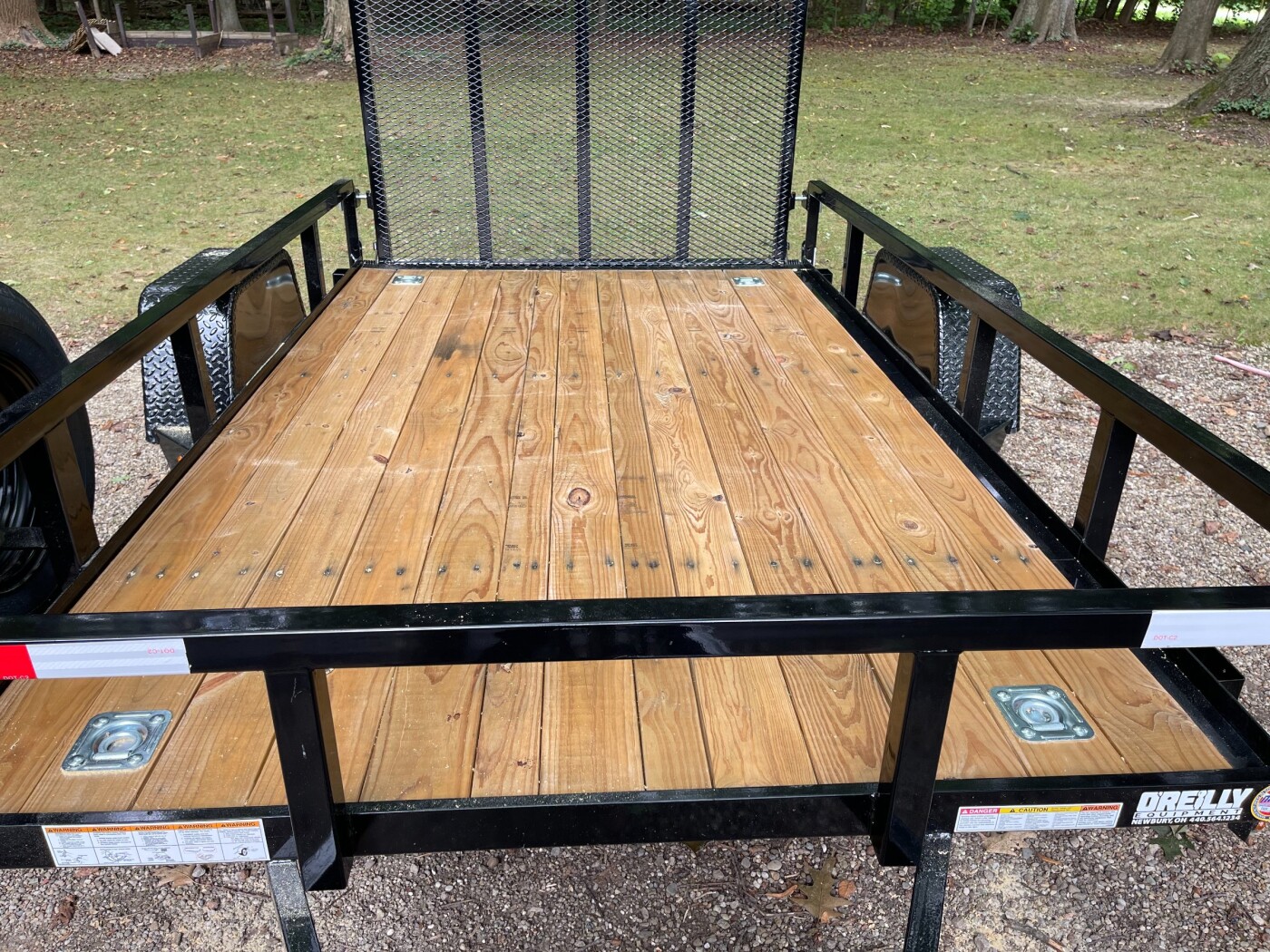

DECKING: 2 x 6 Pressure Treated Pine - stained

LIGHTS: All LED Lights, Rubber Grommet Mounted

ELECTRIC PLUG: 4-Way Flat Molded Plug

FINISH: Powder Coated High Gloss Black

FLOOR HEIGHT: 18"

COUPLER HEIGHT: 16"

BED HEIGHT - TUBE TOP: 13"

BED HEIGHT - 3-BOARD HIGH SIDE: 22"

BETWEEN FENDERS - TUBE TOP: 61.5"(5' Wide) - 71.5"(6' Wide) - 81.5"(7' Wide)

BETWEEN FENDERS - 3-BOARD HIGH SIDE: 59.5"(5' Wide) - 69.5"(6' Wide) - 79.5"(7' Wide)

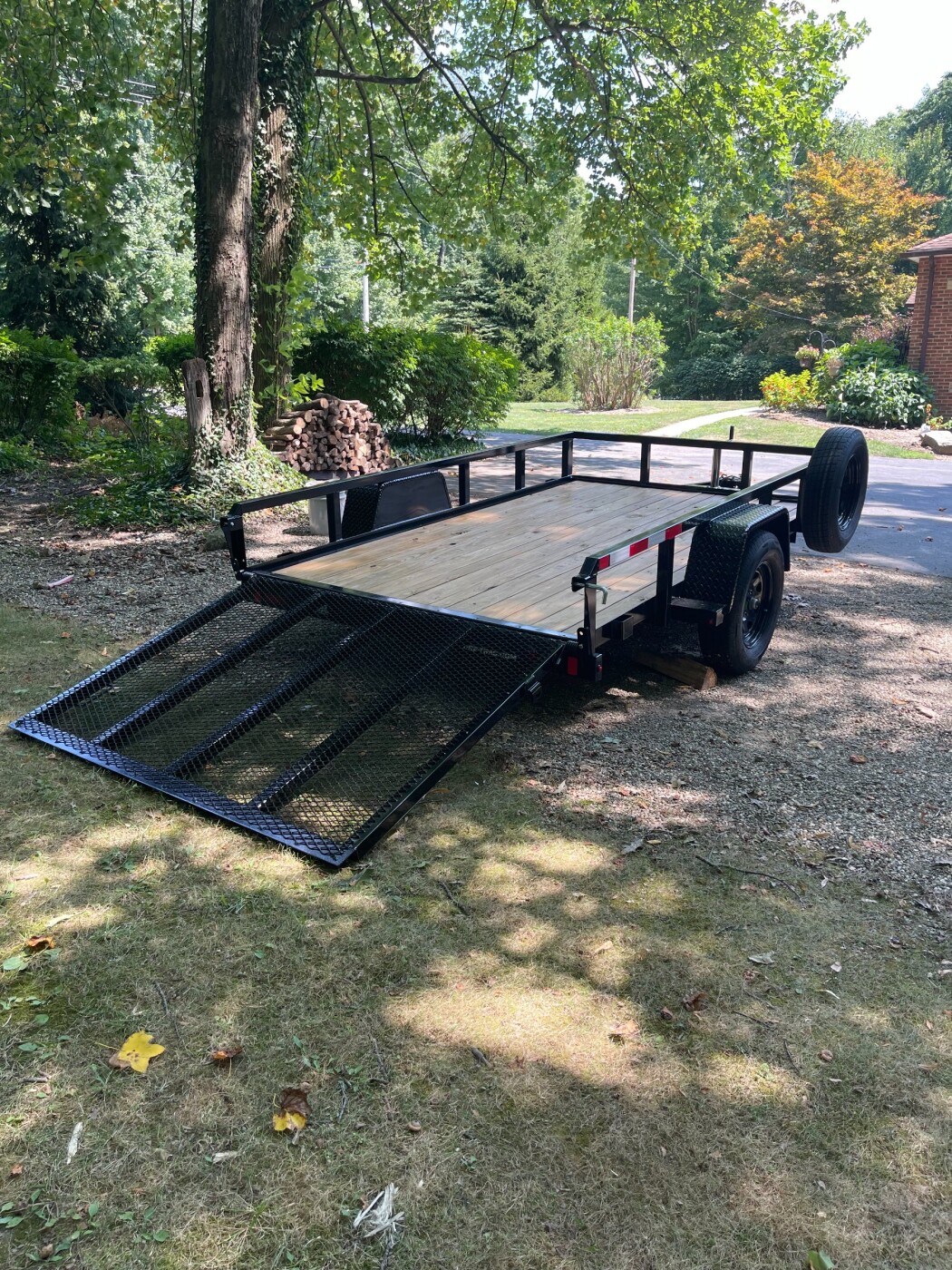

GATE: 2 x 2 Tube, Mesh Covered, Full Width Spring Assist Ramp Gate With Handle
Enclosed Wiring

Self-Retained Gate Pins

Spare Tire Carrier
