Description

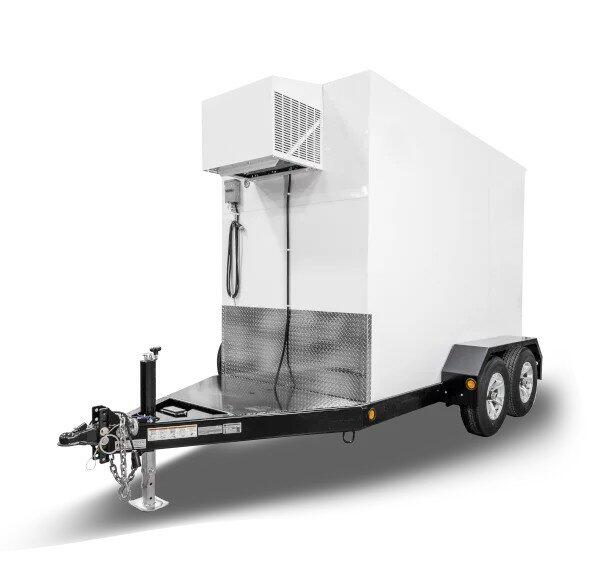

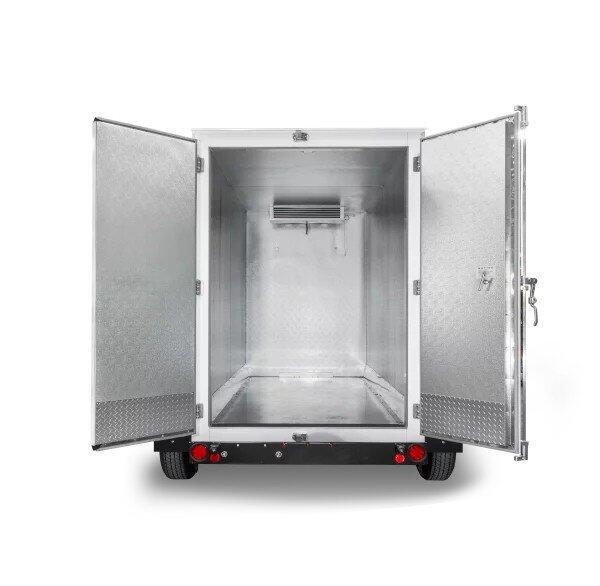

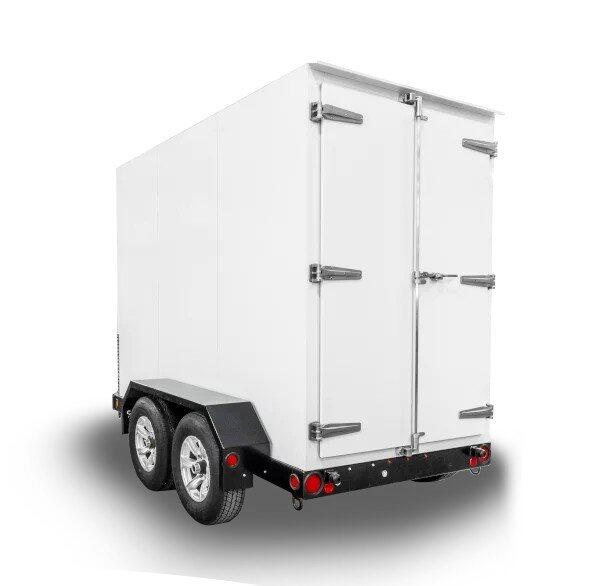

Model 5×10 – Multi-Temp w/ Trailer
Standard Model Numbers
Auto Defrost – R404a:
5x10T AD
Dimensions & Capacities
Approx. Interior Cubic Feet:
285
Exterior Dimensions (W” x D” x H”):
120 x 60 x 88
Interior Dimensions (W” x D” x H”):
114 x 54 x 80.75
Door Opening Dimensions (W” x H”):
78.70 x 50.75
Operating Temperature
(X°F - X°F):
-4 to +40

Factory Presets:
Cooler, Freezer, or Ice

Temperature Adjustable:
Yes

Control:
Electronic

Electrical
Voltage (V/Hz):
120/60

Min. Circuit Required (Amps):
20

Trailer
Trailer Available:
Yes

GVWR (lbs.):
9,995

Axles (lbs.):
5,200 (Dual)

Payload (lbs.):
7,000

Construction:
3X5 Steel Tube

Overall Length:
16'

Hitch Ball Size:
2-5/16"

Adjustable Height Hitch:
Yes

Brakes (Each Axle):
12" Electric Drum

Spare Tire:
Included

Other
Compressor (HP):
1.25

Compressor Type:
Scroll Compressor

Auto Defrost Fan Type:
ECM Fans

Refrigerant:
R404a
Certifications:
NSF, UL, ULC, DOT, NATM
