Description

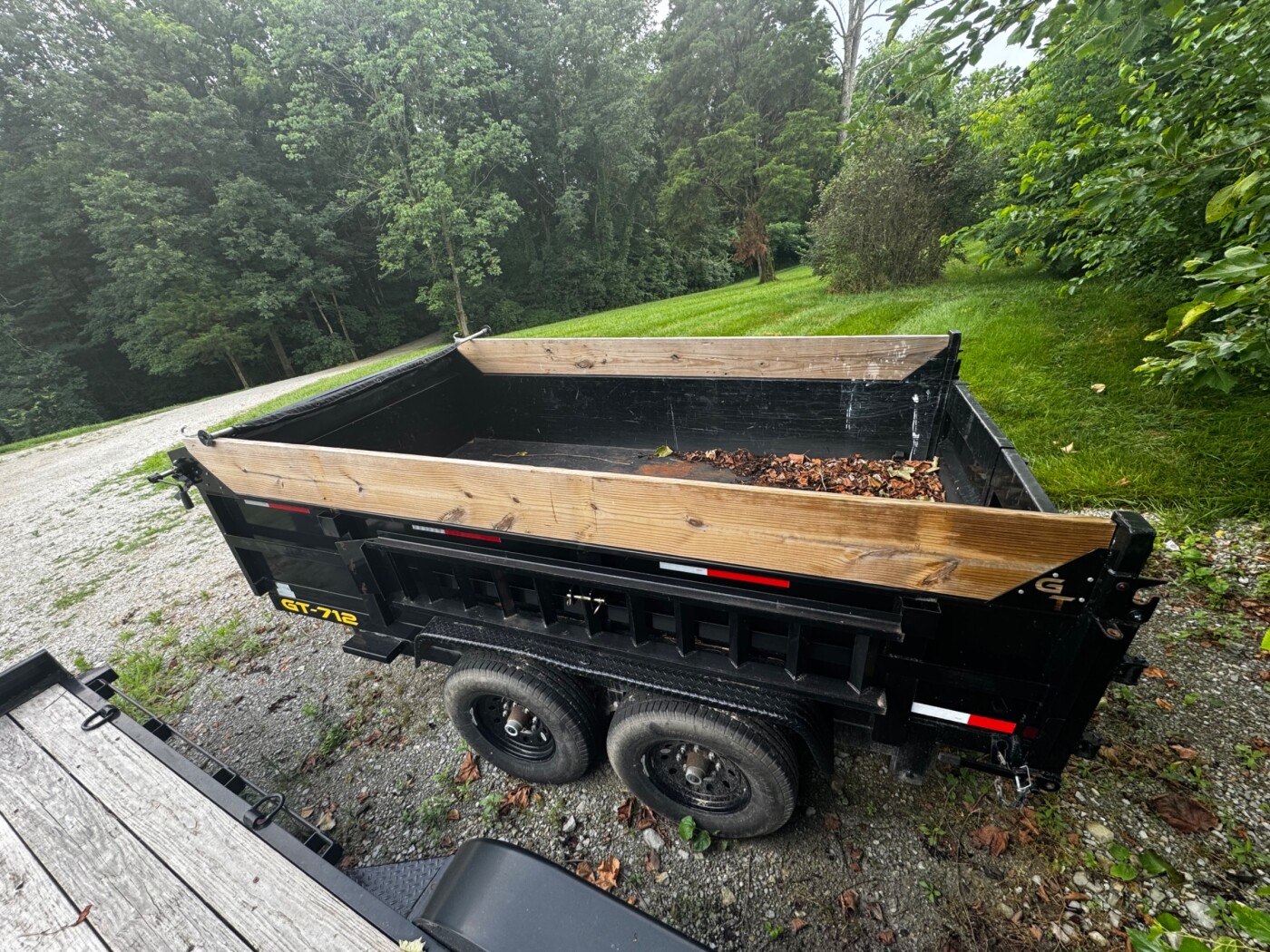

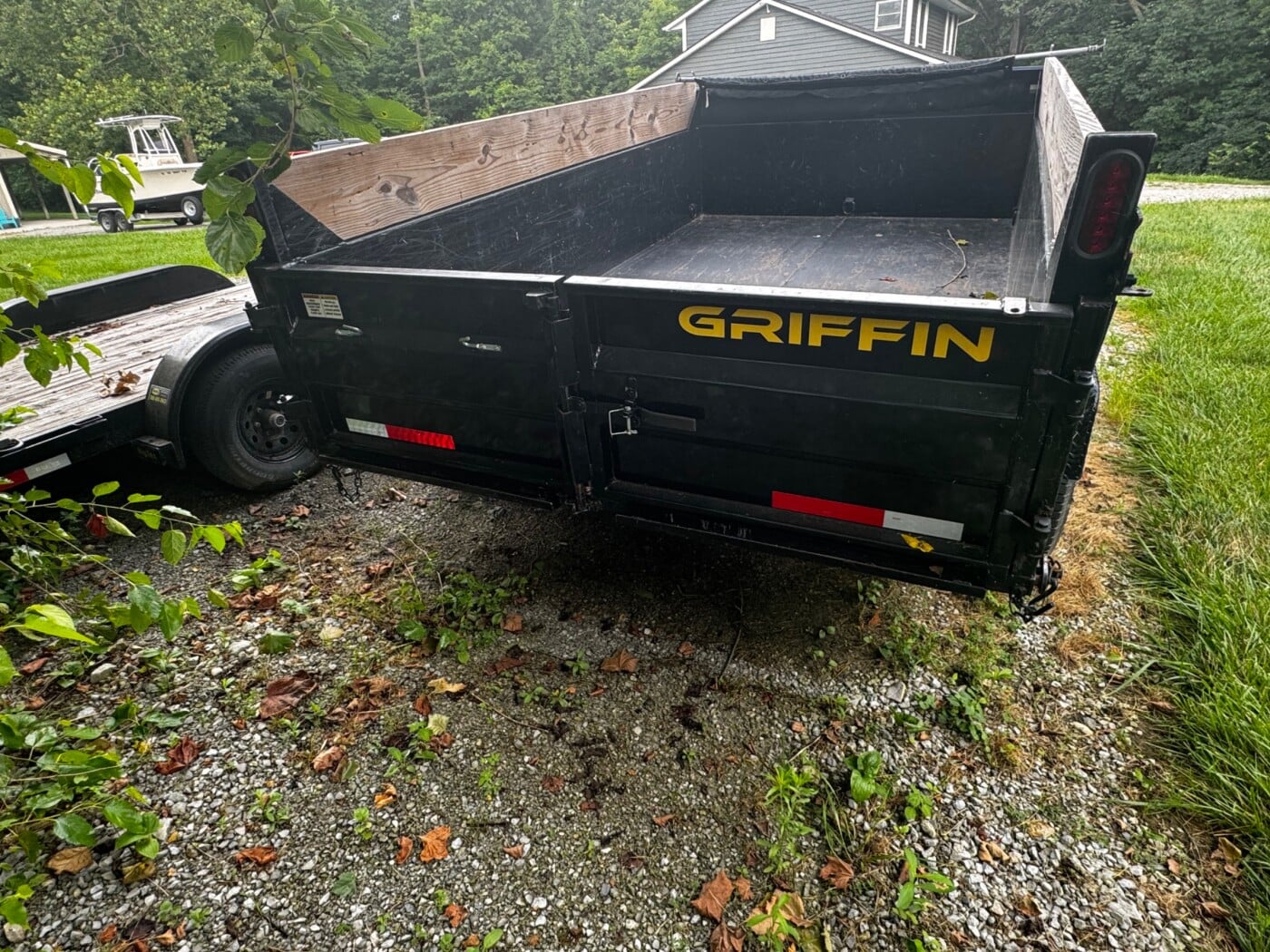

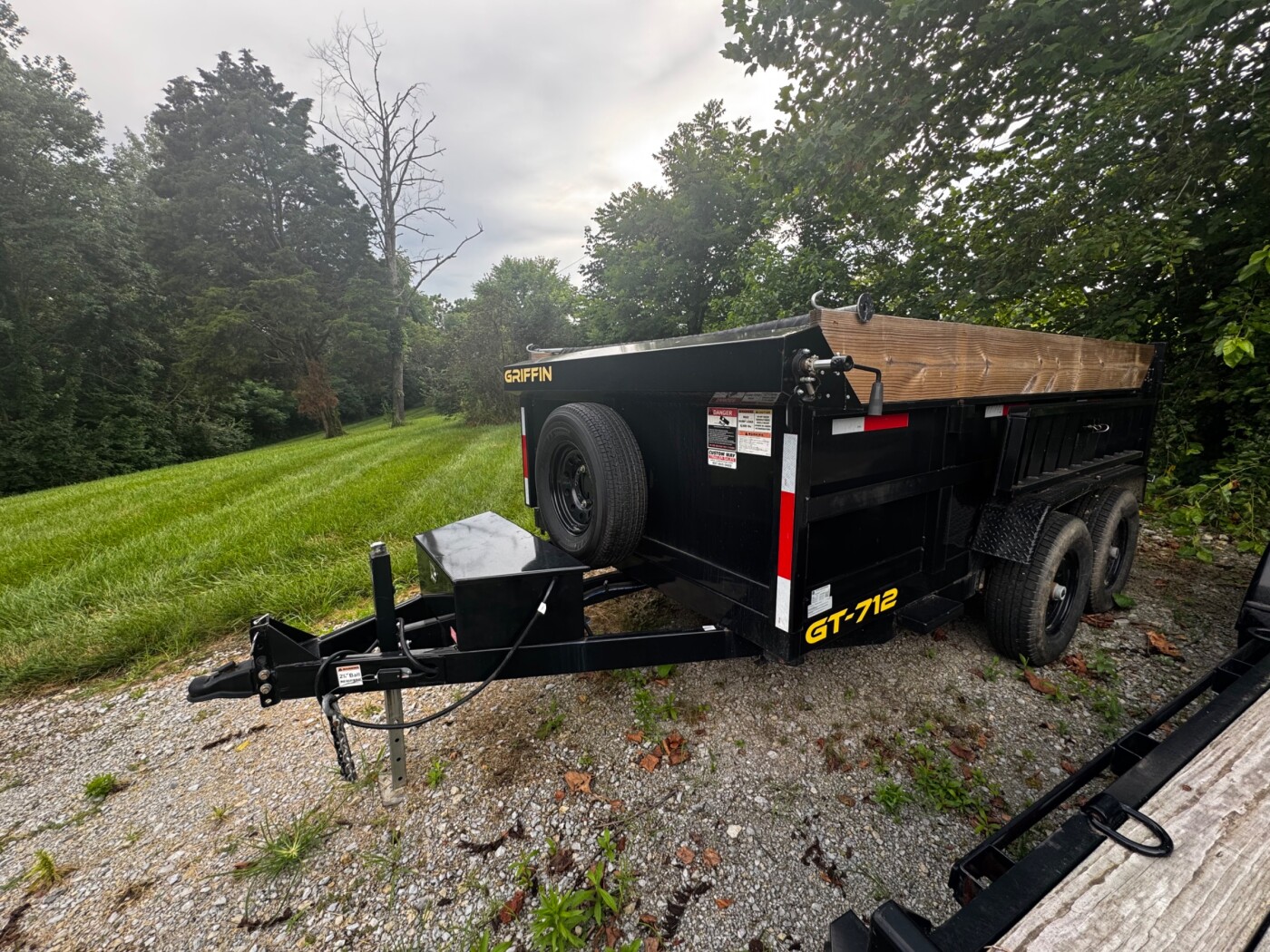

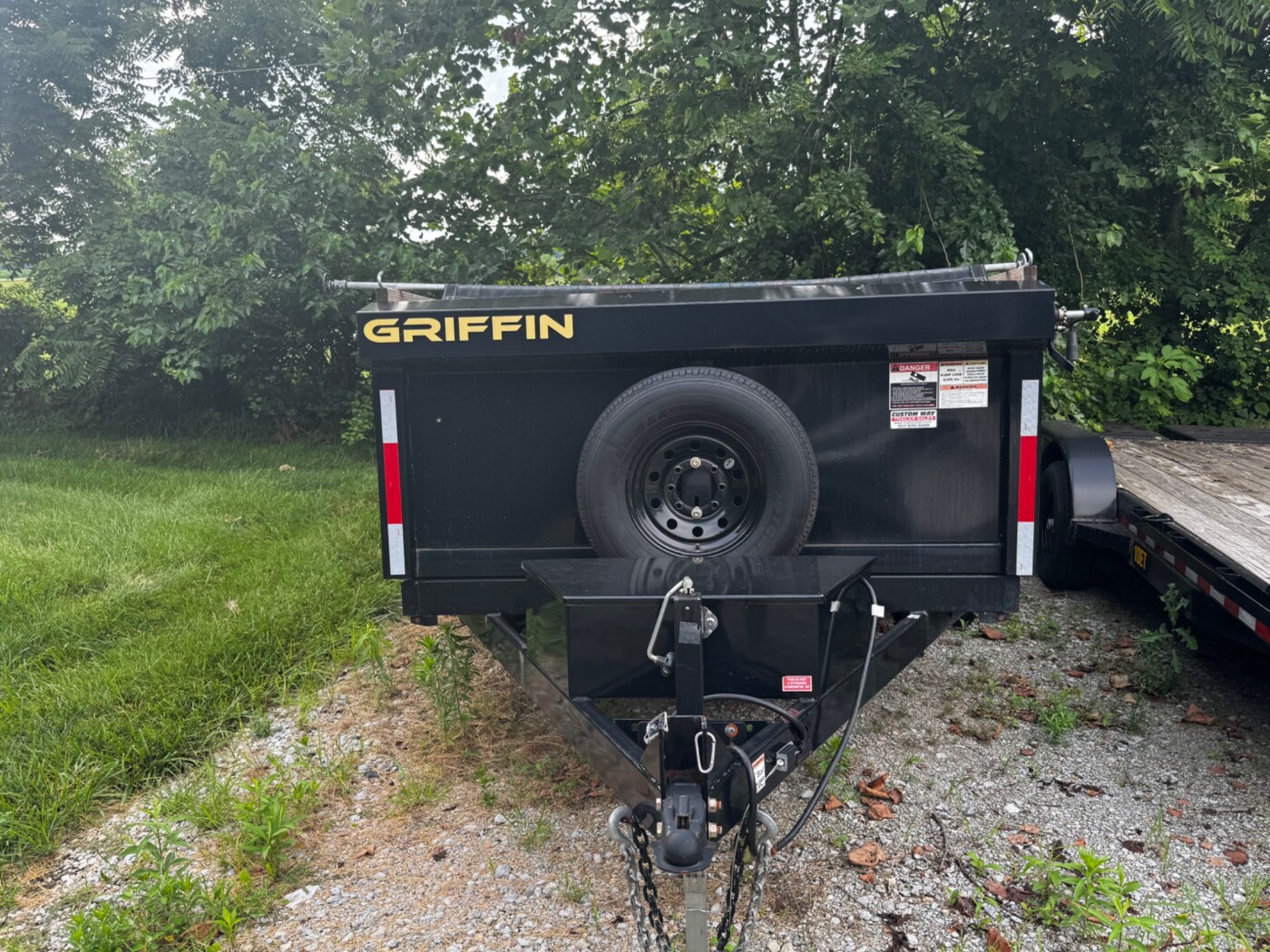

Griffin 712 Dump Trailer

The Griffin 712 is a heavy-duty 7’ x 12’ dump trailer built for reliability, performance, and versatility across construction, landscaping, and material-handling applications. Designed with durability and operator ease in mind, it features a reinforced steel bed, dual hydraulic lift cylinders, and a robust frame engineered to handle demanding loads with efficiency.

Specifications & Features:
• Model: Griffin 712
• Bed Size: 7’ x 12’
• GVWR: 14,000 lbs
• Lift System: Dual-cylinder hydraulic scissor lift
• Axles: Tandem 7K axles with electric brakes
• Tires: 10-ply radial tires in excellent condition
• Construction: Heavy-gauge steel floor and walls with reinforced corners
• Tailgate: Barn door / spreader combo for multiple dump configurations
• Electrical: Sealed LED lighting system with 7-way harness
• Power: Deep-cycle battery with onboard charging system
• Coupler: 2-5/16” ball, safety chains, and breakaway kit
• Finish: Powder-coated frame for corrosion resistance
• Additional Features:
• Integrated tarp kit
• Heavy-duty loading ramps
• D-rings for secure load tie-down
• Built-in stake pockets for side extensions

Overview:
The Griffin 712 provides the power and reliability needed for high-volume hauling, debris removal, and material transport. Its balanced weight distribution, smooth hydraulic performance, and rugged construction make it an excellent choice for both commercial and fleet operations.
