Description

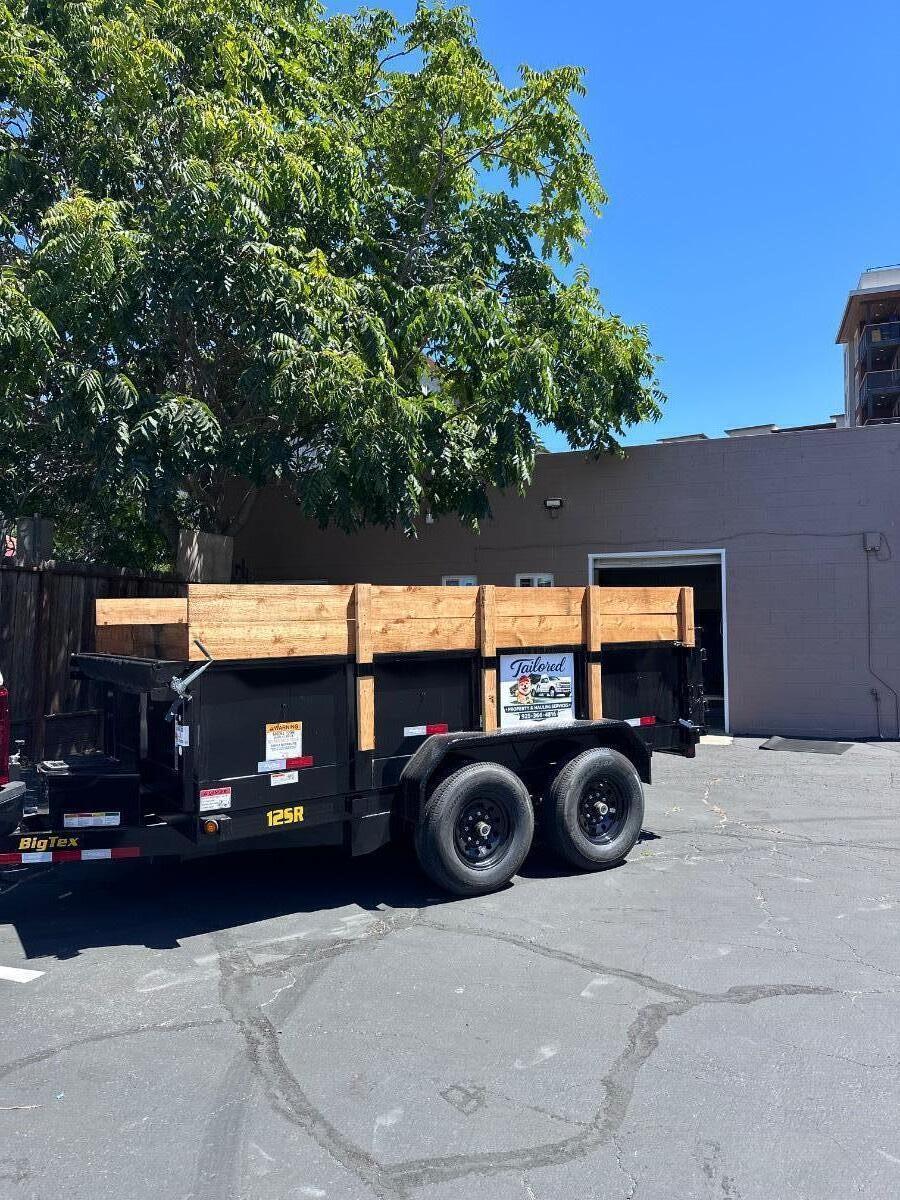

The Big Tex 12SR Pro Series Tandem Axle Single Ram Dump Trailer has a 12-foot bed length, an 83-inch bed width, and a 12,000 lbs GVWR. Capacity & Ratings
• GVWR: 12,000 lbs (derated to 9,999lbs)
• GAWR: 6,000 lbs per axle
• Empty Weight: ~3,500 lbs
• Cargo/Payload Capacity: 8,500 lbs
• Dump Angle: 43°
• Dump Capacity: ~6.1 Cubic Yards
Structural & Build
• Bed Size: 12 feet long by 83 inches wide
• Floor: 10-gauge smooth steel floor
• Sides: 12-gauge, 24 inches tall
• Frame & Tongue: 6-inch channel frame and tongue
• Cross-Members: 3-inch channel on 16-inch centers
• Top Rail: 2-inch x 2-inch square tubing
Axles & Suspension
• Axles: Two 6,000# cambered axles with quick-lubricating hubs
• Brakes: Forward self-adjusting electric brakes
• Suspension: Multi-leaf slipper spring with equalizer
• Tires: ST235/80 R-16 radial tires (Load Range E)
Key Features
• Gate: Rear combo gate (barn doors and spreader gate)
• Hydraulics: Power up/down pump with single cylinder lift ram
• Jack: 8,000 lbs top-wind drop leg jack
• Tie-Downs: 4 D-rings inside the bed
