Description

Basic Specifications


Overall Length: 24 ft
Deck Width: 102 in (8 ft 6 in)
Deck Type: Deck-over (full-width deck above wheels)
Flat Deck: ~20 ft
Dovetail: ~4 ft rear dovetail
Trailer Type: Bumper-pull equipment trailer
Coupler: Adjustable 2-5/16″ ball coupler





Weight Ratings


GVWR: typically 14,000 – 16,000 lbs depending on axle option
Trailer Empty Weight: about 2,900 – 4,600 lbs
Payload Capacity: about 10,500 – 11,400 lbs





Axles / Suspension


Axles: Tandem axles
Common setups:
(2) 7,000 lb brake axles (14K GVWR version)
(2) 8,000 lb Dexter brake axles (16K version)

Axle Type: Electric brakes with EZ-lube or oil bath hubs





Frame & Deck Construction


Frame: Heavy steel channel frame
Tongue: A-frame wrap tongue
Decking: 2×8 treated lumber wood deck
Rub Rail + Stake Pockets: for tie-downs
DOT reflective tape





Loading Features

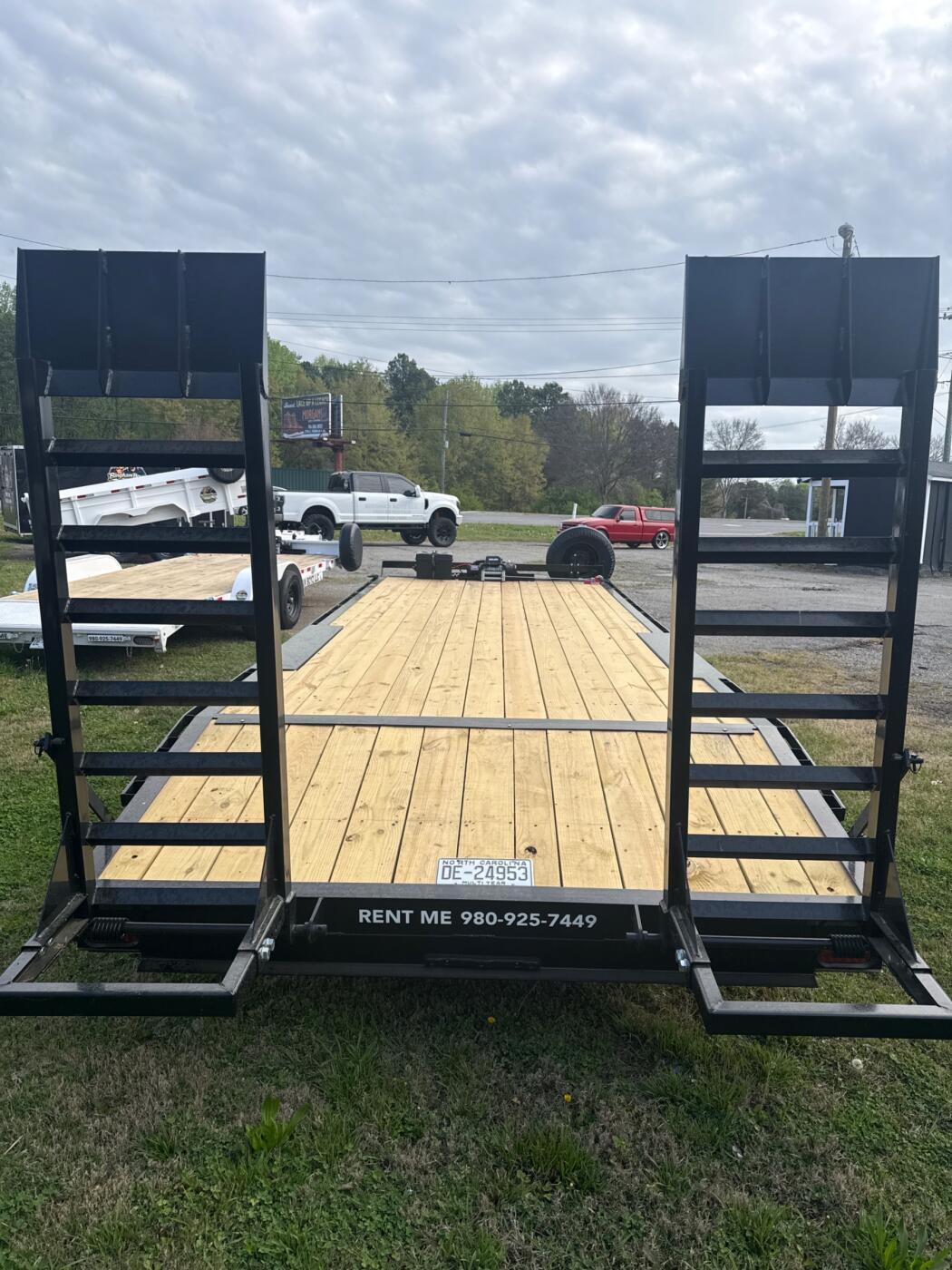

Rear Ramps:
5–6 ft spring-assist flip-up ramps

Dovetail: 4 ft wood dovetail for easier loading angle
Spare Tire Mount





Electrical / Safety


Full LED lighting
12V breakaway brake kit
Safety chains
12,000lb winch
